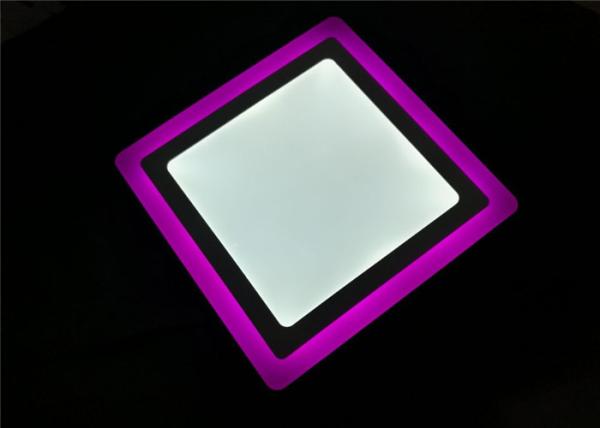

Indoor Ceiling Surface Square Two Color Led Panel 18W+6W White with Pink Rim
Product description
It is upgrade products of the mainstream slim design LED panel light , application areas have uniqueness, which are used widely for indoor lighting which requires atmospher lighting effect such as display room , living room , exhibiton hall , hotel , club etc.
The light in a SMD display is mounted as single units on a Intelligent IC controlled circuit board , the smaller size of these LEDs allows for viewing of the display at a colser distance without the visual distortion that would be present in a standard disply.
It is new lighting concept at present , with recognizable and modern design (3 cycle) , the displays are based on a light-emitting diode smaller than the head of a pin, using Pink and White double color light source , high quality PS material , luminescence uniform realize situation transformation ,
| Item No: |
XT-SSM-18+6W.SQ |
| Item Name: |
Pink Edge Square Surface 24W LED Panel Light |
| Lamp Power: |
18W(cool white) + 6W(pink) |
| Dimensions: |
240mm ˣ 240 ˣ 40mm |
| Cutout Size: |
240mm ˣ 240mm |
| Colours Optional |
white+pink / white+green / white+red / white+warm white
white+blue / white+white |
| Material: |
Die Cast Aliminium + PC |
| Luminous Flux: |
Spot White Light : 1260-1440 lms |
| Input Voltage: |
AC85-265V |
| Output1: |
DC12-25V 300±5% |
| Output2: |
DC42-65V 300±5% |
| Frequency Range: |
50-60Hz |
| LED Type: |
2835 SMD |
| Color Rendering Index(CRI): |
Ra>70/80 |
| Power Factor(PF): |
>0.5 |
| Beam Angle: |
120° |
| Working Lifetime(Hour) : |
>40000 hrs |
| IP Rating : |
IP40 |
| Color Temperature: |
6000K |
| Luminous Efficiency: |
70-80lm/w |
| TC: |
80°C |
| TA: |
50°C (max) |
| Warranty: |
2 years |
Installation Instructions
1. Make sure the power is off first
2. Then cut a hole in the ceiling , the hole size of the ceiling should be the same as the lamp’s cutout size
3. Fix the pad to ceiling with screws in packaging
4. Connect the DC connectors with the lamp and the driver
5. Insert the pinch to the ceiling , make sure it is fastened
6. This product is limited to indoor use only
More Models for Your Selection
| Shape |
Installation |
Model No |
Wattage (W) |
Size (mm) |
|
Round
|
Surface
|
XT-SSM-3+3W.R |
3W+3W |
Ø105×40 |
| XT-SSM-6+3W.R |
6W+3W |
Ø145×40 |
| XT-SSM-12+4W.R |
12W+4W |
Ø190×40 |
| XT-SSM-18+6W.R |
18W+6W |
Ø240×40 |
| XT-SSM-24+12W.R |
24W+12W |
Ø320×40 |
| XT-SSM-36+36W.R |
36W+36W |
Ø390×40 |
|
Square
|
Surface
|
XT-SSM-3+3W.SQ |
3W+3W |
105×105×40 |
| XT-SSM-6+3W.SQ |
6W+3W |
145×145×40 |
| XT-SSM-12+4W.SQ |
12W+4W |
190×190×40 |
| XT-SSM-18+6W.SQ |
18W+6W |
240×240×40 |
| XT-SSM-24+12W.SQ |
24W+12W |
320×320×40 |
| XT-SSM-36+36W.SQ |
36W+36W |
390×390×40 |
